• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91872

• • alternative name: Westinghouse El. Int.

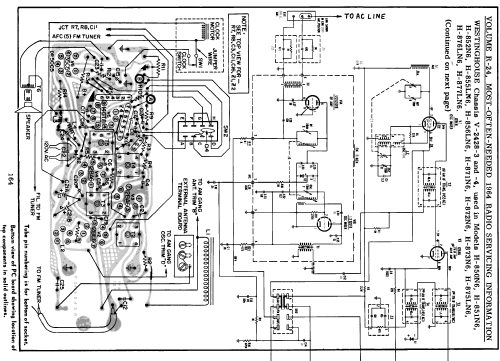

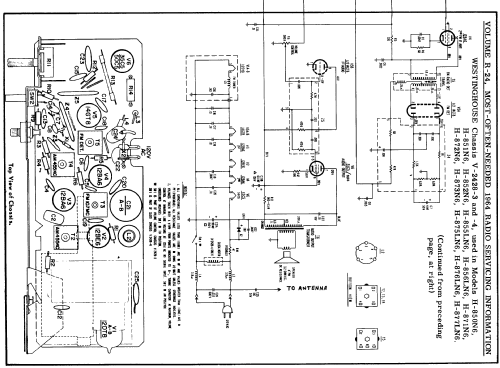

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12DT8 12BE6 12BA6 12BA6 14GT8 35C5

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-875LN6 Ch= V-2428 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• AM-FM tuner chassis V-2428-3 and -4 used in Models H-850N6, H-851N6, H-852N6, H-855LN6, H-856LN6, H-871N6, H-872N6, H-873N6, H-875LN6, H-876LN6 and H-877LN6.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 24, 1964

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
