H-877LN6A Ch= V2428-9
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139017
-
- alternative name: Westinghouse El. Int.

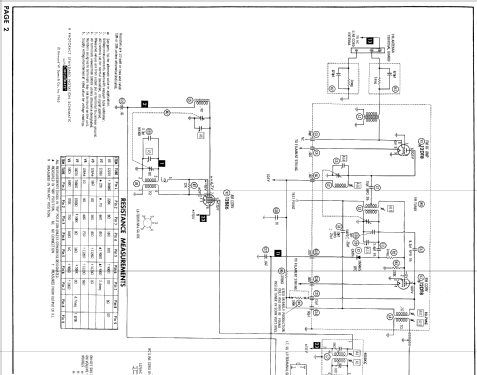

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: H-877LN6A Ch= V2428-9 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, with any shape - general.
- Notes
- Diode Rectifier.
Color=Front-Beige, Cabinet Shell-Maple
The Westinghouse Model H-877LN6A is a 6 Tube AM-FM Receiver.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-65, Set 737, Folder 9)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
