H-889C24(S) Ch= V-2318-45

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1955 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
330619

- alternative name: Westinghouse El. Int.

Schematics

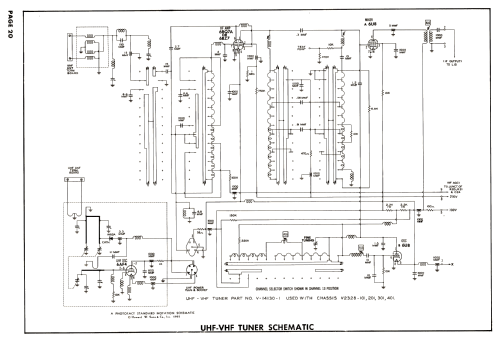

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664276) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

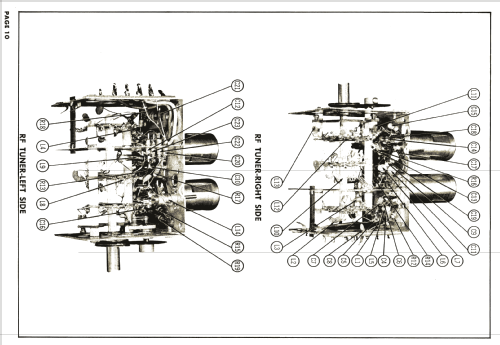

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664277) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

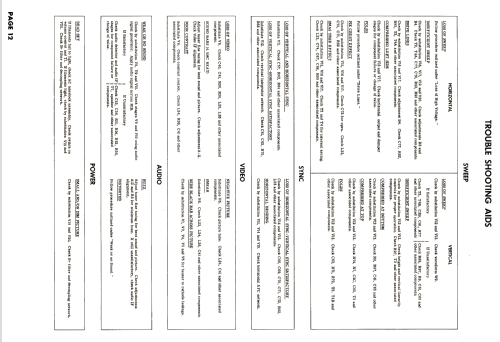

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664278) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

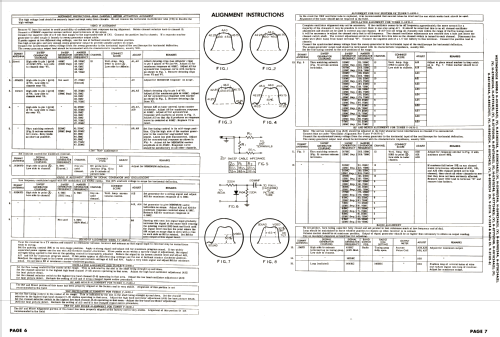

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664279) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664280) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664281) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664282) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664283) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664284) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664285) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664286) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664287) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664288) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664289) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664290) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664291) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664292) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664293) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664294) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664295) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664296) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

H-889C24Ch= V-2318-45; Westinghouse El. & (ID = 2664297) Television — Westinghouse El. & H-889C24Ch= V-2318-45 (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
24

Valves / Tubes
6BQ7A 6AT8 6CB6 6CB6 6CB6 12BY7 6AU6 6AN8 6BN6 6BK5 6CS6 12AU7 12B4A 6AL5 12AU7 6CD6G 6AU4GT 1B3GT 5U4G 5U4G 24DP4A 6BE6 6BA6 6AV6

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

Loudspeaker
2 Loudspeakers

Material
Wooden case

from Radiomuseum.org
Model: H-889C24Ch= V-2318-45 - Westinghouse El. & Mfg. Co. -

Shape
Tablemodel, with any shape - general.

Notes
Westinghouse model H-889C24(S) is a 24” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with radio chassis V-2189-6, chassis V-2318-45, VHF tuner V-14170-2 and picture tube 24DP4A.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 296 Folder 11 dated 11-55)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
