• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93437

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: H-890P6GP Ch= V-2455-1 - Westinghouse El. & Mfg. Co. -

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 89 x 143 x 46 mm / 3.5 x 5.6 x 1.8 inch

• Notes

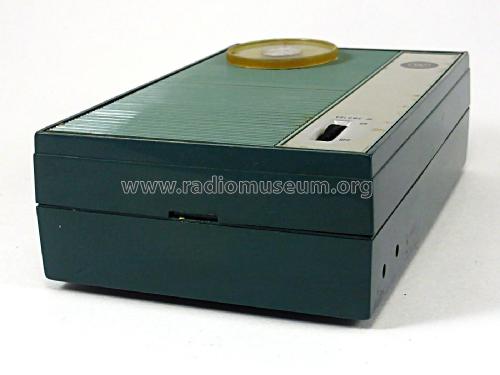

• USA civil defense marks on station dial.  Surf blue color. Earphone jack.  Unique external power receptical with dual ports appearing as holes on lower rightside of case.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 25, 1965

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (TSM 36 (March, 1964))

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
