• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 267491

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superhet with RF-stage

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105-120 Volt

• from Radiomuseum.org
• Model: H-927T21C Ch= V-2340-25 - Westinghouse El. & Mfg. Co. -

• Notes

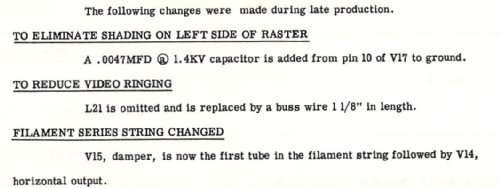

• Changes made during late production can be found in " Production Changes Bulletin 178 "
  Set 345 Folder 1 date 1-57.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 311 Folder 18 dated 3-56)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 345 Folder 1 dated 1-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
