H-92ACS1 Ch= V-2524-2
Westinghouse El. & Mfg. Co. - see also Canadian W.
- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1963
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 93481
-
- alternative name: Westinghouse El. Int.

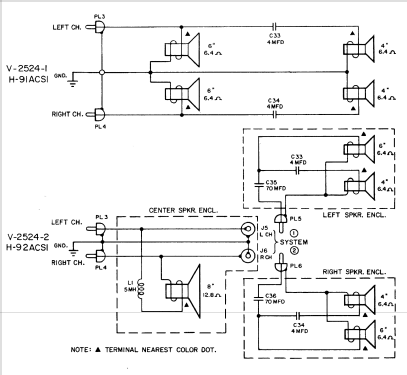

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 108-130 Volt
- Loudspeaker
- 5 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: H-92ACS1 Ch= V-2524-2 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- The Westinghouse Model H-92ACS1 is a 2 piece portable AC Operated 11 Transistor Stereo Amplifier with 4 Speed Automatic Record Changer. One cabinet holds the Amplifier and Record Changer, the other cabinet holds the 5 speakers. Has Qty(1) PM 8" center speaker, Qty(2) PM 4" speakers and Qty(2) PM 6" speakers. Cabinet color is Levant Black. Uses Record Changer 670V027H07, with speeds of 16, 33, 45 and 78 RPM.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 25, 1965
- Literature/Schematics (1)
- - - Manufacturers Literature (Westinghouse Datasheet PH6050)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
