H-KU227A Ch= V-2382-204

Westinghouse El. & Mfg. Co. - see also Canadian W.

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Westinghouse El. & Mfg. Co. - see also Canadian W.

Year
1958 ?

Category
Television Receiver (TV) or Monitor

Radiomuseum.org ID
321636

- alternative name: Westinghouse El. Int.

Schematics

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533426) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533427) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533428) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533429) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533430) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533431) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533432) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533433) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533434) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

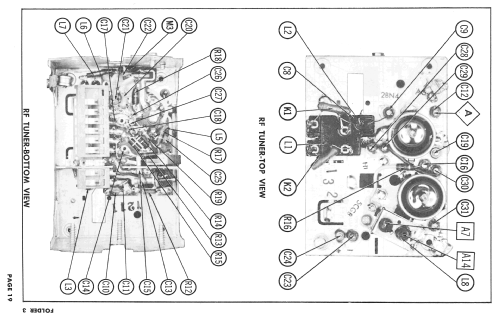

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533435) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533436) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533437) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533438) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533440) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533441) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533442) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533443) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533444) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533445) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

H-KU227A Ch= V-2382-204; Westinghouse El. & (ID = 2533446) Television — Westinghouse El. & H-KU227A Ch= V-2382-204 (3)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
18

Valves / Tubes
2AF4 2BN4 5CG8 6AU8 3BN6 5AQ5 3BZ6 3BZ6 3DK6 6AU8 5BT8 3BY6 or 3CS6 5CZ5 6CG7 12DQ6A 12D4 1B3GT 21CEP4

Main principle
Superhet with RF-stage

Wave bands
Wave Bands given in the notes.

Power type and voltage
Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Material
Wooden case

from Radiomuseum.org
Model: H-KU227A Ch= V-2382-204 - Westinghouse El. & Mfg. Co. -

Shape
Tablemodel, with any shape - general.

Notes
Westinghouse model H-21KU227A is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with chassis V-2382-204, a VHF-UHF tuner and picture tube 21CEP4.

Literature/Schematics (1)
Photofact Folder, Howard W. SAMS (Set 388 Folder 3 dated 2-58)

Author
Model page created by Dirk Taekels. See "Data change" for further contributors.
