• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66343

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 12BE6 12BA6 6BJ6 12AL5 12AV6 50L6GT

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: H-328C7 Ch= V-2136-4 - Westinghouse El. & Mfg. Co. -

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Westinghouse model H-328C7 is an AC operated combination phono-radio, AM-FM superheterodyne receiver with loop antenna. Selenium Rectifier.



• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Literature/Schematics (1)

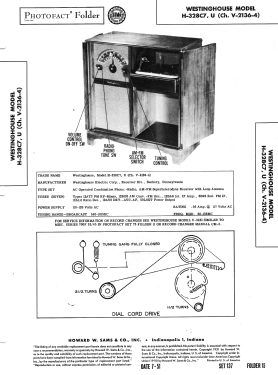

• Photofact Folder, Howard W. SAMS (Set 137, folder 15, dated 7-51)
