• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66342

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 14H7 or 12BA6 12BE6 14H7 or 12BA6 14B6 or 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

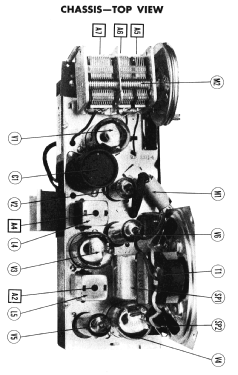

• Model: H-327T6U Ch= V-2157-3U - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Westinghouse model H-327T6U is an AC-DC operated superheterodyne receiver with loop antenna. Bakelite with plastic grille.





• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Mentioned in
• Machine Age to Jet Age II (page 310.)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 126 Folder 14 dated 3-51)
