• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1918

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196579

• • alternative name: Westinghouse El. Int.

• Number of Tubes
• 1

• Valves / Tubes
• VT-1

• Main principle
• Crystal or Solid State Detector; something special ? Please give information (notes)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

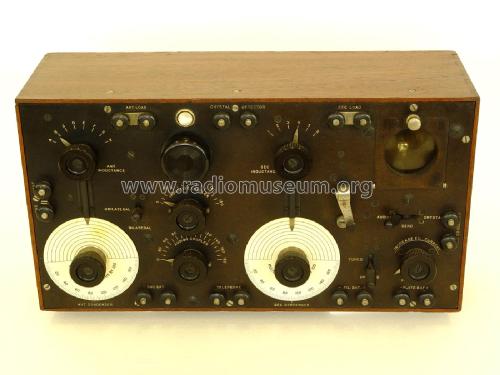

• Model: Westighouse Navy Radio SE-1012A [Short Wave Receiver] - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 17 x 9 x 7 inch / 432 x 229 x 178 mm

• Notes

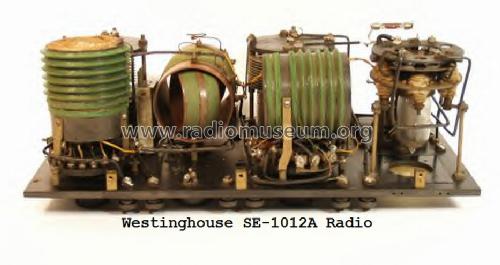

• Westinghouse Type SE-1012A Short Wave Receiver. This set covered the 50-1000 meter wavelength range. This set featured both a crystal detector and an Audion detector tube. The operator could switch between the two.

• Literature/Schematics (1)
• Ebay Item number: 190508371716

• Author
• Model page created by Alan Larsen. See "Data change" for further contributors.
