• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66501

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6K7 6A8 6A8 6K7 6G5 6Q7 6J7 6H6 6K7 6L6 6L6 5Z3

• Main principle
• Superhet, double/triple conversion; ZF/IF 465/100 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 12.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

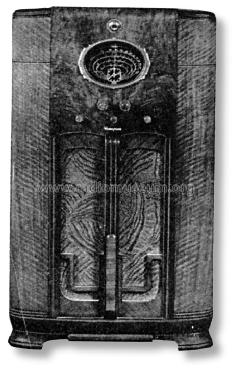

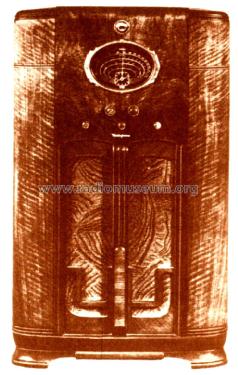

• Model: WR-315 - Westinghouse El. & Mfg. Co. -

• Shape
• Console with any shape - in general

• Notes

• AFC acting on second if 100KHz.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 8-10,11,12,13,14

• Literature/Schematics (2)
• Pre-War Consoles

• Literature/Schematics (3)

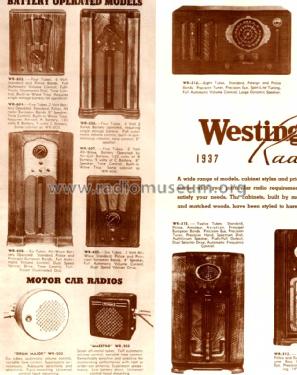

• -- Original prospect or advert (The Westinghouse Folder for 1937.)
