- Country
- United States of America (USA)
- Manufacturer / Brand
- Westinghouse El. & Mfg. Co. - see also Canadian W.
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 199891
-
- alternative name: Westinghouse El. Int.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); 1 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 2 W (unknown quality)
- from Radiomuseum.org

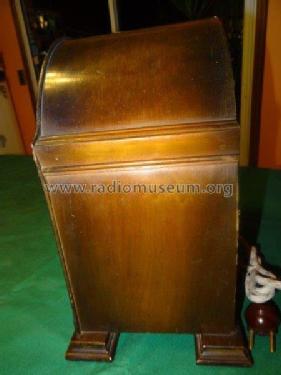

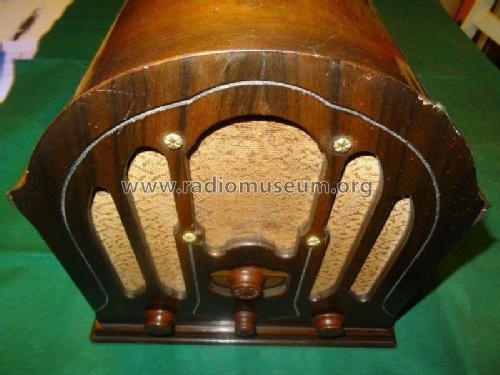

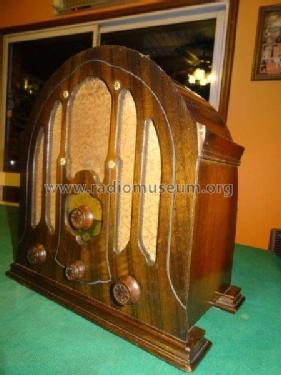

- Model: WR32 - Westinghouse El. & Mfg. Co. -
- Shape
- Tablemodel, with any shape - general.
- Mentioned in

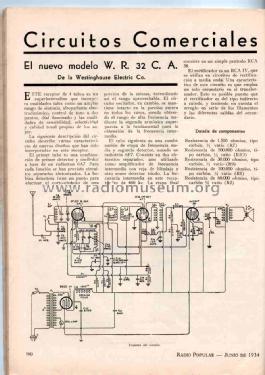

- revista Radio Popular Bs.As. Nº 37, junio 1934
- Author
- Model page created by Heriberto Tavella. See "Data change" for further contributors.
- Other Models
-
Here you find 3151 models, 1750 with images and 2665 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Westinghouse El. & Mfg. Co. - see also Canadian W.
Collections
The model WR32 is part of the collections of the following members.
