• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66511

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6A8 6K7 6Q7 6U5 6F6G 6F6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 11.5 inch = 29.2 cm

• Material
• Wooden case

• from Radiomuseum.org

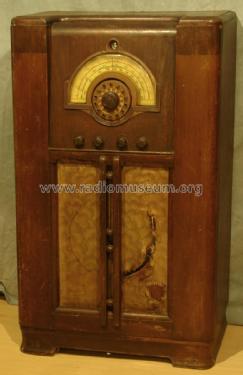

• Model: WR 342 - Westinghouse El. & Mfg. Co. -

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 24 x 33 x 11.5 inch / 610 x 838 x 292 mm

• Notes

•  Motorized Pushbutton Tuning

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 12-15,16,17,18

• Literature/Schematics (2)
• Pre-War Consoles

• Literature/Schematics (3)
• -- Original prospect or advert (The Westinghouse Folder for 1938.)
