• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66557

• • alternative name: Westinghouse El. Int.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

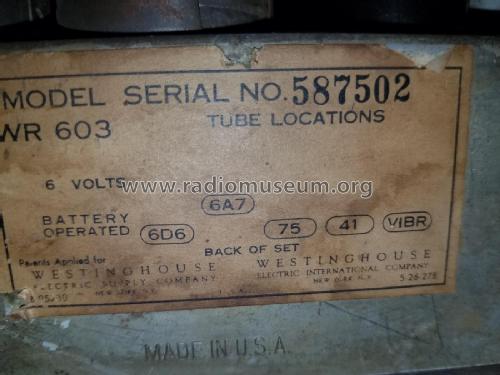

• Valves / Tubes
• 6A7 6D6 75 41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: WR-603 - Westinghouse El. & Mfg. Co. -

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Farm radio. Sync. vibrator for +B.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Riders 10-13,14

• Literature/Schematics (3)
• -- Original prospect or advert (The Westinghouse Folder for 1937.)
