• Country
• United States of America (USA)

• Manufacturer / Brand
• Westinghouse El. & Mfg. Co. - see also Canadian W.

• Year
• 1934–1936 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167845

• • alternative name: Westinghouse El. Int.

• Number of Tubes
• 5

• Valves / Tubes
• 1-V 6A7 6B7 78 41

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110 AC / 6 DC Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3.6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

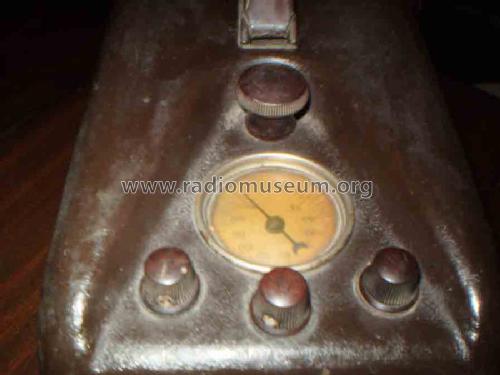

• Model: WR-42 - Westinghouse El. & Mfg. Co. -

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 160 x 200 x 440 mm / 6.3 x 7.9 x 17.3 inch

• Notes
• May be a portable auto radio (?).

• Author
• Model page created by Carlos Romualdo Landi. See "Data change" for further contributors.
