- Country
- United States of America (USA)
- Manufacturer / Brand
- Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Year
- 1929
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 181568
-
- alternative name: Jewell
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org

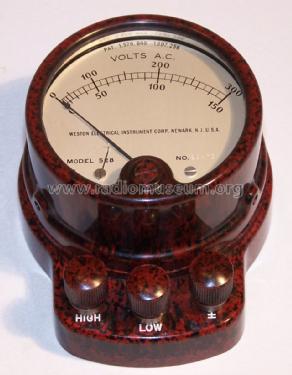

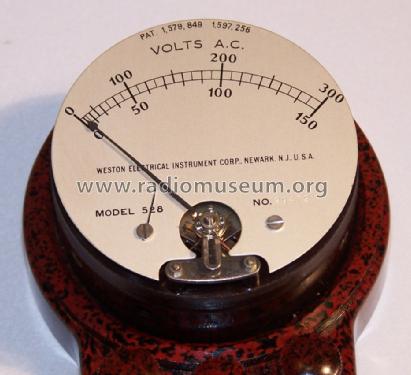

- Model: A.C. Voltmeter 528 - Weston Electrical Instrument
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 98 x 81 x 51 mm / 3.9 x 3.2 x 2 inch
- Notes
- Dreheisen-Wechselstrom-Tischinstrument (Voltmeter Amperemeter, Milliamperemeter). Skalenlänge 55 mm. The Weston Model 528 A.C. Voltmeter is a companion meter to the Model 528 A.C. Ammeter. This Weston line of instruments represented a distinct achievement in high-grade A.C. meter design at the time c. 1929.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
