- Country
- United States of America (USA)
- Manufacturer / Brand
- Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Year
- 1928
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 66586
-
- alternative name: Jewell
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Powered by external power supply or a main unit.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radio Tube Tester 537 - Weston Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Notes
- Two round instruments, manual test voltage adjustment, 12 connector clamps for test voltages on the panel. Supply from radio socket of the tube to be tested.
- External source of data
- Ernst Erb

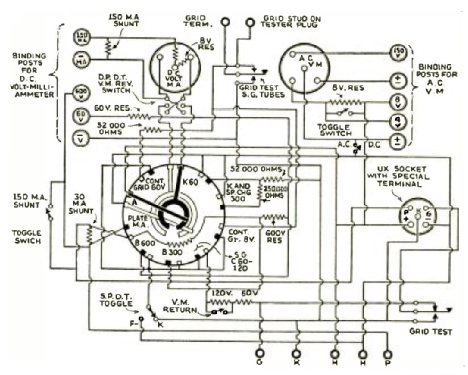

- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
