• Country
• United States of America (USA)

• Manufacturer / Brand
• Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)

• Year
• 1928 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 66592

• • alternative name: Jewell

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Dry Batteries / 4,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

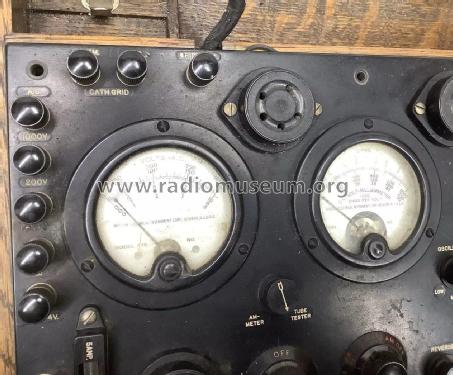

• Model: Radio Test Set and Tube Checker 565 - Weston Electrical Instrument

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.5 x 3.75 x 9 inch / 318 x 95 x 229 mm

• Net weight (2.2 lb = 1 kg)
• 14 lb 5 oz (14.312 lb) / 6.498 kg

• Price in first year of sale
• 187.00 $

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
