• Country
• United States of America (USA)

• Manufacturer / Brand
• Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 310113

• • alternative name: Jewell

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org
• Model: AC Voltmeter 904 - Weston Electrical Instrument

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6 x 7 x 3 inch / 152 x 178 x 76 mm

• Notes

• Range: 0-3, 7.5, 15, 30, 75, 150, 300, 750 AC volts

• Net weight (2.2 lb = 1 kg)
• 5.5 lb (5 lb 8 oz) / 2.497 kg

• Literature/Schematics (1)

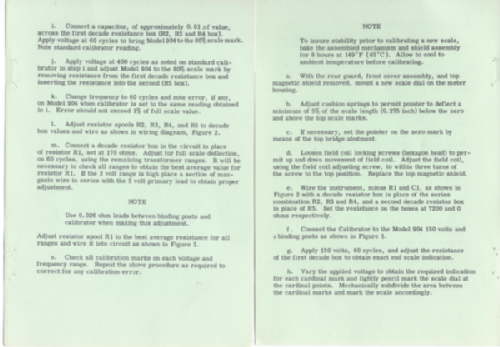

• - - Manufacturers Literature

• Author
• Model page created by David Hamm. See "Data change" for further contributors.
