- Country
- United States of America (USA)
- Manufacturer / Brand
- Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Year
- 1900–1940 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 279859
-
- alternative name: Jewell
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org

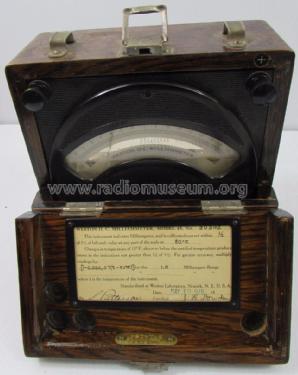

- Model: D.C. Milliammeter 45 - Weston Electrical Instrument
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8 x 8 x 4.5 inch / 203 x 203 x 114 mm
- Notes
-
The Weston Model 45 designation was used for both ammeters and voltmeters in various ranges.
- Net weight (2.2 lb = 1 kg)
- 10 lb 0 oz (10 lb) / 4.540 kg
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
