Portable AC & DC Voltmeter
Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)
- Year
- 1900 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 160374
-
- alternative name: Jewell
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Portable AC & DC Voltmeter - Weston Electrical Instrument
- Shape
- Tablemodel, with any shape - general.
- Notes
- Weston Standard Portable Alternating and Direct Current Voltmeter.

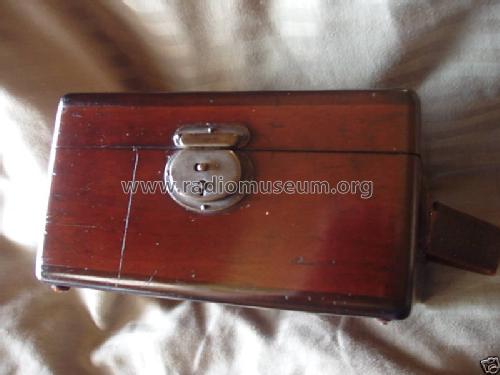

Calibration document enclosed in lid of the wooden box gives some data, valid for instrument No. 225:

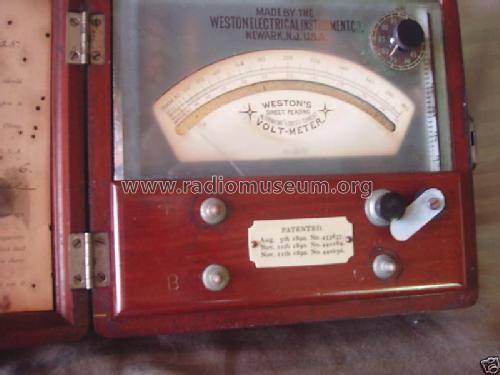

Resistance of 300 Volt coil at 70°F = 5199.5 Ohms. Resistance of 150 Volt coil at 70°F = 2599.8 Ohms. Standardized at Weston Laboratories Newark, N.J. U.S.A., April 8th, 1896. Plate between screw terminals indicates instrument patented in 1890.
- Net weight (2.2 lb = 1 kg)
- 6 lb (6 lb 0 oz) / 2.724 kg
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Meyer Rochwerger. See "Data change" for further contributors.
