• Country
• United States of America (USA)

• Manufacturer / Brand
• Weston Electrical Instrument Co.; Newark, N.J.; (Jewell Electrical Instrument Co.; Chicago, IL)

• Year
• 1940 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 213116

• • alternative name: Jewell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 01A

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

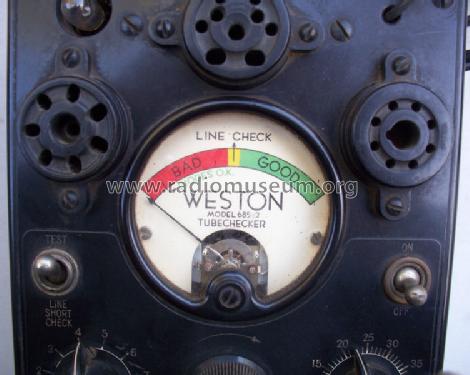

• Model: Tubechecker 685 Type 2 - Weston Electrical Instrument

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Weston Tubechecker 685 Type 2 is part of Signal Corps Test Set I-56-A.
  Order No. 811-NY-41

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
