- Country
- Great Britain (UK)
- Manufacturer / Brand
- Wharfedale (Brand), Wharfedale Wireless Works, Rank Wharfedale Ltd.; Bradford
- Year
- 1971 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 286002

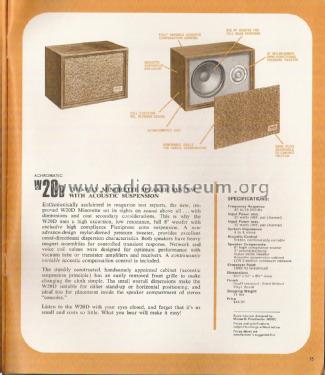

Pics taken from general internet source.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Power out
- 35 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Denton W20D - Wharfedale Brand, Wharfedale
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 247 x 360 x 220 mm / 9.7 x 14.2 x 8.7 inch
- Notes
-
Two way system.
8" woofer and 3" doom tweeter.
45Hz to18000Hz
Recommended power input 10W Min per channel, Max input 35W per channel
Inpedance 4-8 Ohms
- Net weight (2.2 lb = 1 kg)
- 14 lb (14 lb 0 oz) / 6.356 kg
- Author
- Model page created by Bartosz Szwed. See "Data change" for further contributors.
