Stentorian 12 Watt Power Amplifier W.B.12
Whiteley Electrical Radio, Boneham & Co. Ltd. (WB, Stentorian); Mansfield
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Whiteley Electrical Radio, Boneham & Co. Ltd. (WB, Stentorian); Mansfield
- Year
- 1958 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 338287
-
- alternative name: Whiteley Electrical Radio Co. Ltd.; Mansfield
Stentorian Poweramp WB12

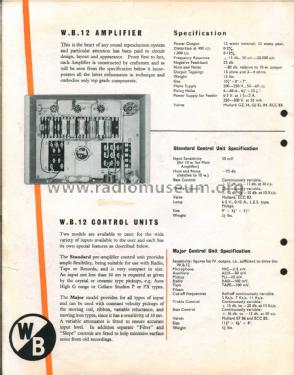

Whiteley Stentorian WB12 prospect
Whiteley Stentorian WB12 prospect
- Number of Tubes
- 4
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 12 W (15 W max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stentorian 12 Watt Power Amplifier W.B.12 - Whiteley Electrical Radio,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 10.875 x 8 x 7 inch / 276 x 203 x 178 mm
- Notes
-
12 Watt Power amplifier.
This power amplifier can be driven by the standard control unit or the Major Control Unit.
- Net weight (2.2 lb = 1 kg)
- 13 lb (13 lb 0 oz) / 5.902 kg
- Mentioned in
- -- Original prospect or advert (Whiteley (GB))
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
