Stentorian Full Range Speaker 12" H.F. 1216

Whiteley Electrical Radio, Boneham & Co. Ltd. (WB, Stentorian); Mansfield

Data
Forum
Pictures
Collections

  • Year
  • 1961 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 342832
    • alternative name: Whiteley Electrical Radio Co. Ltd.; Mansfield

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Stentorian Full Range Speaker 12" H.F. 1216 - Whiteley Electrical Radio,
  • Shape
  • Chassis only or for «building in»
  • Notes

  • 12" Full Range Speaker Model Whiteley Stentorian H.F. 1216.

    Flux Density 16000 Gauss

    Bass Resonance 37 Hz

    Frequency Response 20 - 16000 Hz (in Bass Reflex cabinet)

    Handling Capacity 15 Watts

  • Price in first year of sale
  • 15.00 GBP
  • Mentioned in

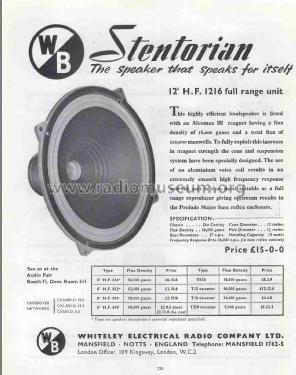

  • -- Original prospect or advert (Hi-Fi-News-1961-04)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
