- Country
- United States of America (USA)
- Manufacturer / Brand
- Lafayette Radio & TV Corp; New York (NY)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66669
-
- alternative name: Wholesale Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Recording phonogr.-Disc Recorder
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org

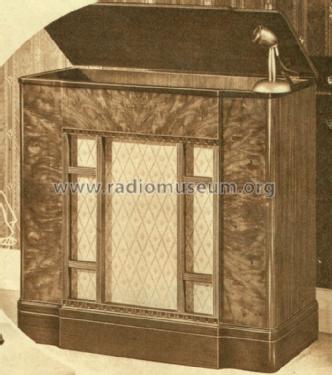

- Model: S-53 - Lafayette Radio & TV Corp; New
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 35 x 33.75 x 16.25 inch / 889 x 857 x 413 mm
- Notes
- Rider's Perpetual volume 13 shows this model under "Wholesale" instead of "Lafayette". The Lafayette model M-42 has a push-pull AF output stage and a tuning eye 6G5. The model S-53 has a push-pull AF output stage; tuning eye 6U5 and a microphone input. Model S-53 is similar to model S-28 but is housed in a walnut console instead of the tabletop case. The recorder uses a crystal microphone with a separate preamplifier stage using a 6SQ7 tube. Recording is by a crystal cutting head on a acetate blank disc.See details and summaries for the models of this Lafayette catalog no. 80, Spring-Summer 1940.
- Price in first year of sale
- 87.50 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Lafayette Radio Catalog (No.80, page 24)
