- Country
- Germany
- Manufacturer / Brand
- Wigo acustic, G. Widmann (und Söhne); Schwenningen / Burlafingen
- Year
- 1976/1977 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 322843
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- No Power needed
- Loudspeaker
- 4 Loudspeakers
- Power out
- 80 W (100 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: A5 S - Wigo acustic, G. Widmann und S
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 405 x 720 x 300 mm / 15.9 x 28.3 x 11.8 inch
- Notes
-

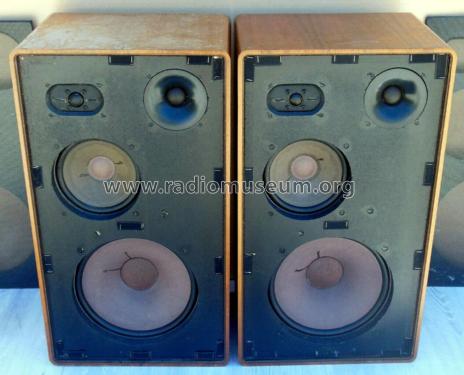

Wigo A5 S
4-Weg HiFi - Lautsprecherbox mit 4 Wigo Lautsprechern,
- Tieftöner ø 310 mm, Schwingspule ø 50mm, Aludruckgußchassis
- Tief-Mitteltöner ø 195 mm, Schwingspule ø 37mm
- Kalotten-Mittel-Hochtöner ø 37mm
- Kalottenhochtöner ø 25 mm
Bruttovolumen ca 87 l, 80/100 Watt Nenn/Musikbelastbarkeit, Impedanz 8 Ω.
Gehäuseausführung: Nußbaumfurnier
- Net weight (2.2 lb = 1 kg)
- 28.5 kg / 62 lb 12.4 oz (62.775 lb)
- Author
- Model page created by Michael Lienhop. See "Data change" for further contributors.
