All Transistor Hi Fi Sound MS-635 (Japan 708)

Wilco (Sanyo Electric, Inc.); Compton, CA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Wilco (Sanyo Electric, Inc.); Compton, CA

Year
1965 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
341450

Schematics

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809994) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809995) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809997) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809998) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809991) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

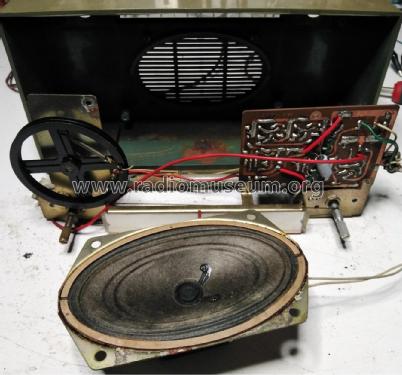

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809992) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

All Transistor Hi Fi Sound MS-635 ; Wilco Sanyo Electric (ID = 2809993) Radio — Wilco Sanyo Electric All Transistor Hi Fi Sound MS-635 (1)

Technical Specifications

Number of Transistors
6

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

Tuned circuits
5 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Batteries / addl. power jack / D: 4 x 1.5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 13 cm = 5.1 inch

Power out
0.4 W (undistorted)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: All Transistor Hi Fi Sound MS-635 - Wilco Sanyo Electric, Inc.;

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
260 x 170 x 105 mm / 10.2 x 6.7 x 4.1 inch

Notes
Made in Japan 708

Net weight (2.2 lb = 1 kg)
1.1 kg / 2 lb 6.8 oz (2.423 lb)

Author
Model page created by Matthew Xenakis. See "Data change" for further contributors.
