• Country
• United States of America (USA)

• Manufacturer / Brand
• Wilco (Sanyo Electric, Inc.); Compton, CA

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237836

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC710 2SC710 2SC710 2SC710 2SC710 2SC710 2SB135 2SB135 2SB136 2SB136

• Main principle
• Superheterodyne (common); 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

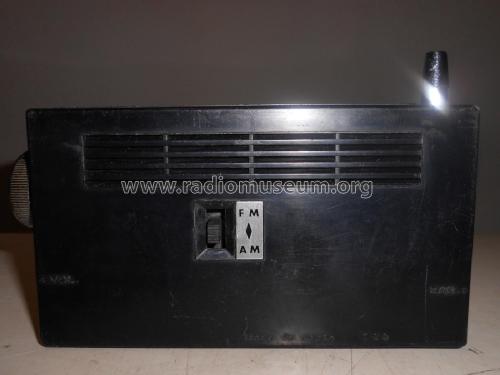

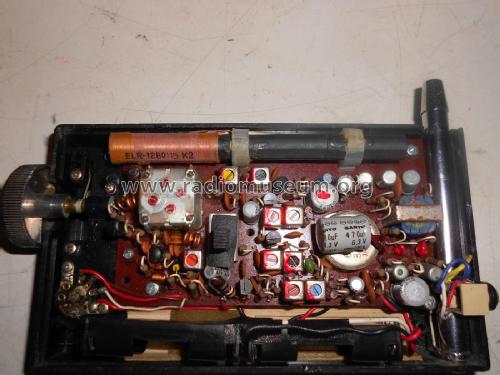

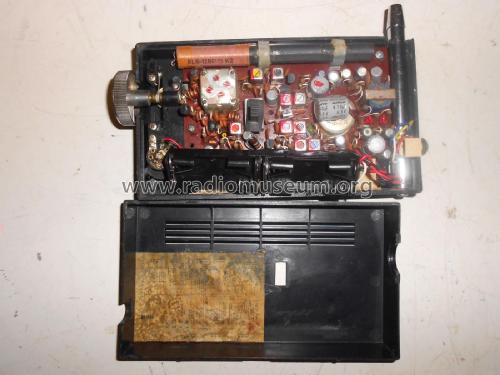

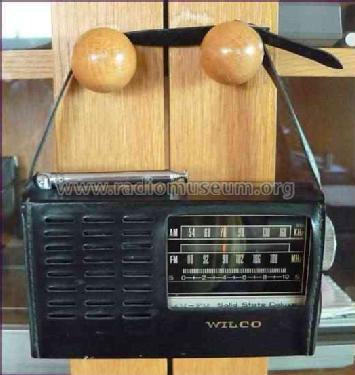

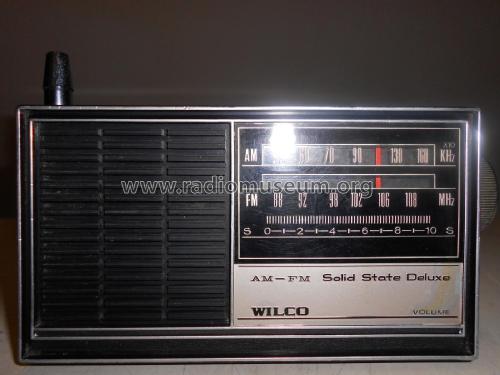

• Model: AM-FM Solid State Deluxe BF-106 - Wilco Sanyo Electric, Inc.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 170 x 100 x 45 mm / 6.7 x 3.9 x 1.8 inch

• Notes

• Made in Japan 708

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Author
• Model page created by Rudolf Nemeth. See "Data change" for further contributors.
