• Country
• United States of America (USA)

• Manufacturer / Brand
• Wilcox-Gay Corp.; Charlotte (MI)

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 66683

• • Brand: Recordio

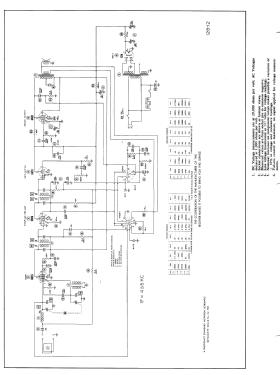

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Recordette Sr. 1J10 Ch= 1J1 - Wilcox-Gay Corp.; Charlotte MI

• Shape
• Tablemodel, with any shape - general.

• Notes

• Recordio model 1J10 is an AC operated superheterodyne receiver and disc recorder

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 22, covering 1951

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 128 Folder 12 dated 3-51)

• Other Models

• Here you find 236 models, 117 with images and 189 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wilcox-Gay Corp.; Charlotte (MI)
