6B45W Manhattan

Wilcox-Gay Corp.; Charlotte (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 66764
    • Brand: Recordio

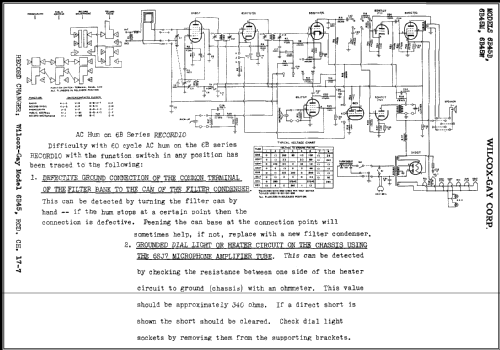

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 6B45W Manhattan - Wilcox-Gay Corp.; Charlotte MI
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 24.375 x 37.5 x 16.0625 inch / 619 x 953 x 408 mm
  • Notes
  • The Wilcox-Gay model Manhattan 6B45 is a compact console radio-recorder-phonograph with an automatic record changer, microphone, three channel amplifier, recorder and reproducer. There are three colors: 6B45W for Walnut, 6B45M for Mahogany and 6B45B for desert Blonde. Storage space for 25 record albums. Walnut or Mahogany models list at $265.--, desert Blonde at $275.--.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 17 = 1948 and before
