7E44 Recordio
Wilcox-Gay Corp.; Charlotte (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Wilcox-Gay Corp.; Charlotte (MI)
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 66785
-
- Brand: Recordio

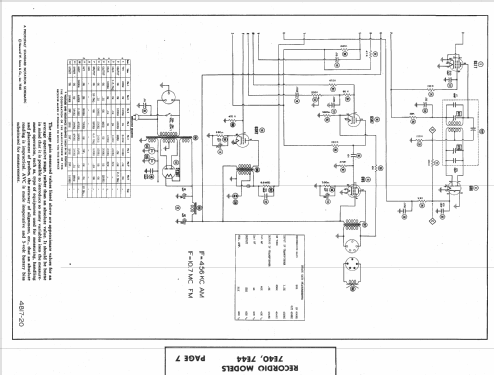

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superheterodyne (common); ZF/IF 456/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 7E44 Recordio - Wilcox-Gay Corp.; Charlotte MI
- Shape
- Console, Lowboy (legs < 50 %).
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference

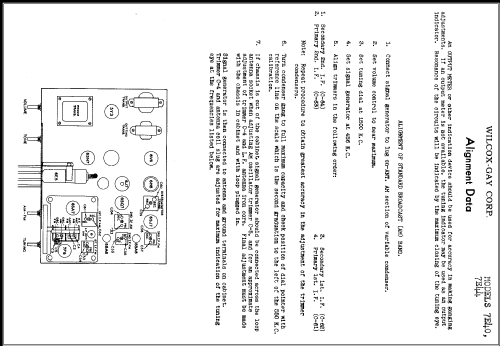

- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (1)

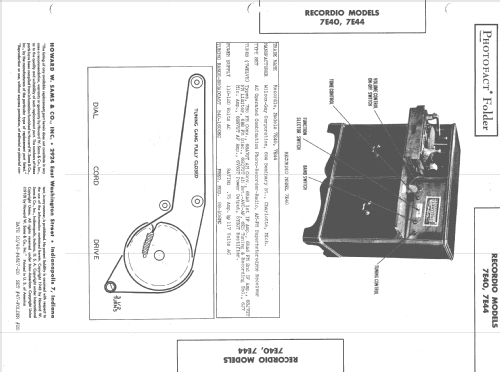

- Photofact Folder, Howard W. SAMS (Set 47, Folder 20)
- Other Models
-
Here you find 239 models, 120 with images and 192 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Wilcox-Gay Corp.; Charlotte (MI)
