- Country
- United States of America (USA)
- Manufacturer / Brand
- Wilcox-Gay Corp.; Charlotte (MI)
- Year
- 1940 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 66838
-
- Brand: Recordio

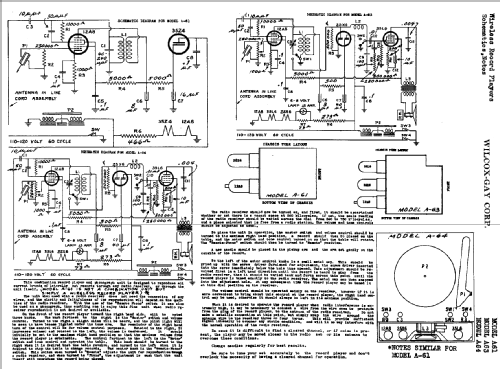

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: A64 - Wilcox-Gay Corp.; Charlotte MI
- Notes
- Wireless record player. Combination unit.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-5
