A-24 Ch= 6J4

Wilcox-Gay Corp.; Charlotte (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1941 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 225686
    • Brand: Recordio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 175 kHz; 1 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material

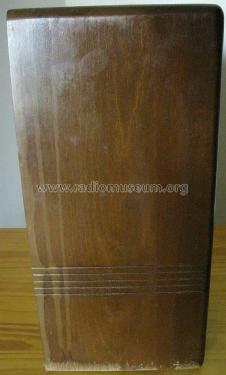

  • Wooden case
  • from Radiomuseum.org
  • Model: A-24 Ch= 6J4 - Wilcox-Gay Corp.; Charlotte MI
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 12.625 x 15.75 x 7.5 inch / 321 x 400 x 191 mm
  • Notes

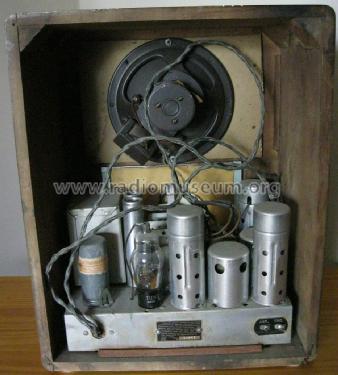

  • The Wilcox-Gay A-24 is a 6V DC operated BC and Police Band farm radio. Uses Sync. vibrator for +B.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
