• Country
• United States of America (USA)

• Manufacturer / Brand
• Wilcox-Gay Corp.; Charlotte (MI)

• Year
• 1950 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 311703

• • Brand: Recordio

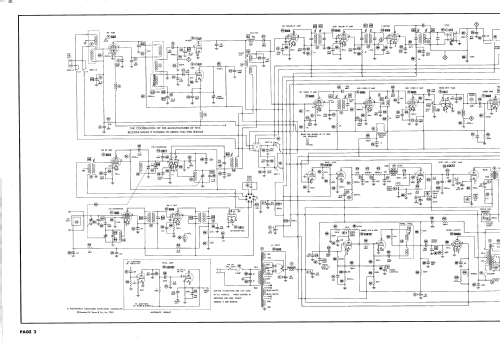

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• 6AG5 6J6 6AG5 6AG5 6AG5 6AL5 6AU6 6K6GT 6AG5 12AT7 6BE6 6BA6 6AL5 6BA6 6BA6 6AU6 6T8 6K6GT 6SN7GT 6SN7GT 6SN7GT 6B6G 6W4GT 1B3GT 5U4G 16DP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz; 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: OD-446M - Wilcox-Gay Corp.; Charlotte MI

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Combination AM-FM-Phono-TV receiver.

• Literature/Schematics (1)

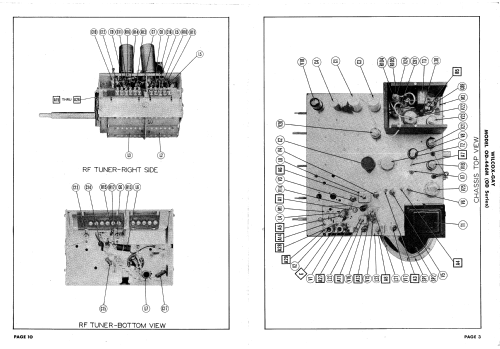

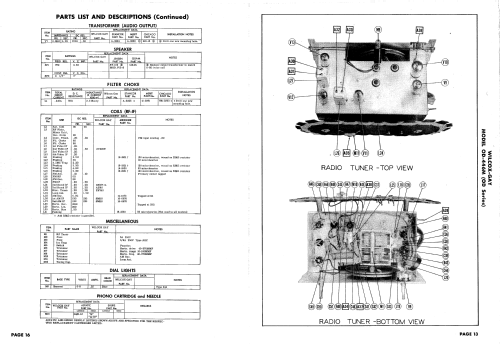

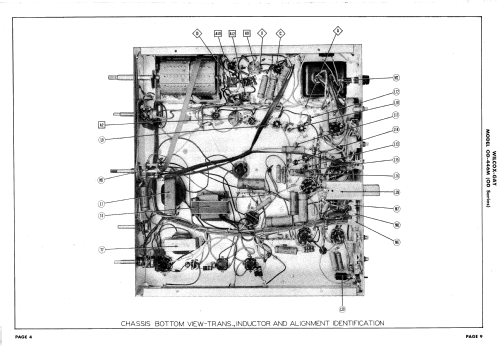

• Photofact Folder, Howard W. SAMS (Set 101, Folder 17, dated 7-50)

• Author
• Model page created by David Erali. See "Data change" for further contributors.
