• Country
• United States of America (USA)

• Manufacturer / Brand
• Wilcox-Gay Corp.; Charlotte (MI)

• Year
• 1952 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 136619

• • Brand: Recordio

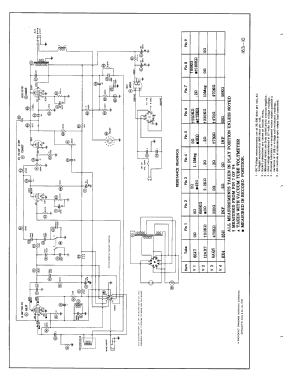

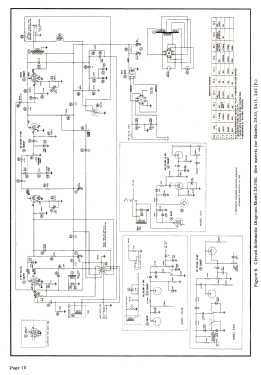

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 5879 or 6SJ7 12AX7 6AQ5 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Recordio 2A10 - Wilcox-Gay Corp.; Charlotte MI

• Shape
• Tablemodel, with any shape - general.

• Notes

• The 2A Series Wilcox Gay " recordio" features fingertip operation for fast forward , playback, stop, record and fast reverse. The "recordio" is designed to record and playback two tracks of material on standard width recording tape, wich doubles the playing time of the standard 5" or 7" reel of tape with no loss of frequency response or quality.

• Literature/Schematics (1)

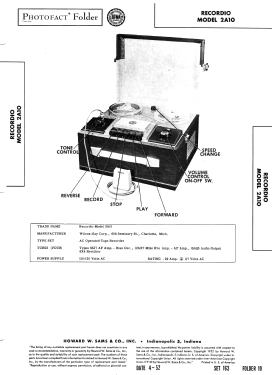

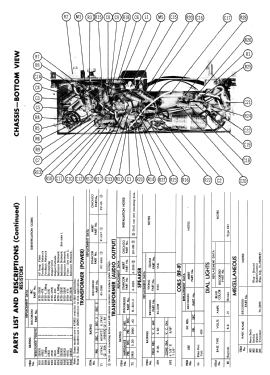

• Photofact Folder, Howard W. SAMS (Set 163 folder 10 date 4-52)

• Literature/Schematics (2)
• Photofact Folder, Howard W. SAMS (Set 180, folder 10, dated 9-52)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
