• Country
• United States of America (USA)

• Manufacturer / Brand
• Wilcox-Gay Corp.; Charlotte (MI)

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245307

• • Brand: Recordio

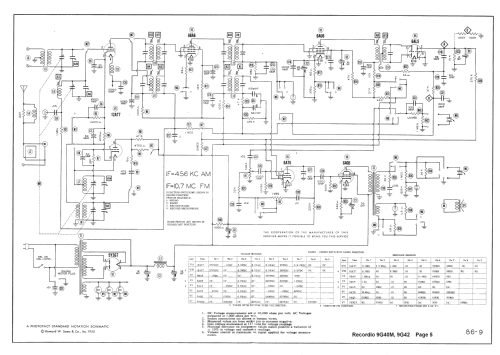

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 6BA6 6AU6 6AL5 6AT6 6AQ5 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 456/10700 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.5 inch = 29.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Recordio 9G42 - Wilcox-Gay Corp.; Charlotte MI

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• AC Operated Combination Phonograph-Recorder-Radio.
  AM-FM Superheterodyne Receiver.

  AM: 540-1620kc   FM: 88-109Mc.

• Mentioned in
• Photofact Folder, Howard W. SAMS (Vol.9/50 Date 2-50 86-9 Set 86 Folder 9)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
