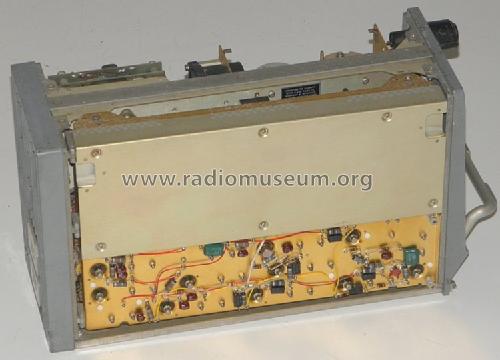

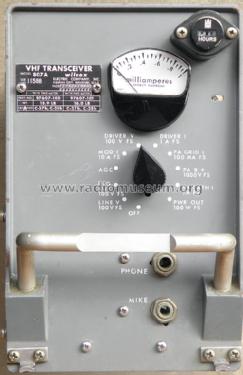

VHF Transceiver 807A

Wilcox Electric; Kansas City MO

Data
Forum
Pictures
Collections

  • Year
  • 1965 ??
  • Category
  • Commercial Transmitter & Receiver (TRX not Amateur)
  • Radiomuseum.org ID
  • 211479

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • 8121
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 27,5 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: VHF Transceiver 807A - Wilcox Electric; Kansas City
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 126 x 198 x 365 mm / 5 x 7.8 x 14.4 inch
  • Notes

  • Ground based VHF equipment for multi channel voice communication.
    Frequency range: 116.0 - 149.975 MHz
    AM, 680 channels @ 50 kHz or 1360 channels @ 25 kHz spacing.
    Channeling time 4 sec typical.
    Power out: 25 W min., 40 W nominal

    Price in 1967.

    This transceiver was part of AN/GRC-175.

  • Net weight (2.2 lb = 1 kg)
  • 17 lb 4 oz (17.25 lb) / 7.832 kg
  • Price in first year of sale
  • 3,551.00 $
