All Transistor Boy's Radio

Windsor Industries, Inc.; Brooklyn, NY

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 239549

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Main principle
  • TRF with diode detector; Reflex
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: All Transistor Boy's Radio - Windsor Industries, Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Notes

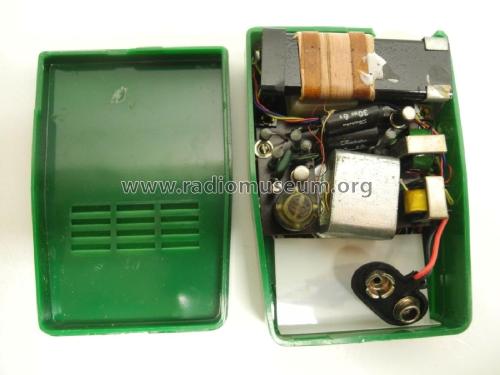

  • As noted in the Bunis reference, there are several variations of this radio.  All have two transistors, thumbwheel tuning, on/off/volume knobs, and metal perforated grill areas.

    Made in Japan.

    Similar to Hampton Boy's Radio

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
