Transistor Six 15032 (6T-220)

Windsor Industries, Inc.; Brooklyn, NY

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243051

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
  • Power out
  • 0.07 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transistor Six 15032 - Windsor Industries, Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 4.56 x 2.88 x 1.31 inch / 116 x 73 x 33 mm
  • Notes

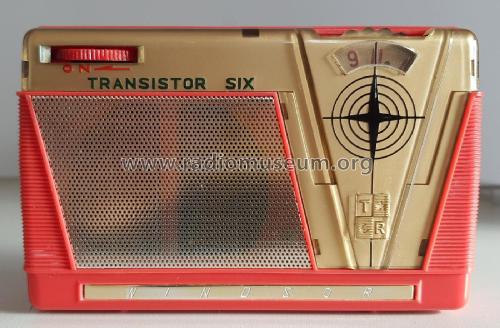

  • Windsor Portable AM Receiver Model Transistor Six.
    Tuning Range 535 -1605 kHz.
    Carrying Case.

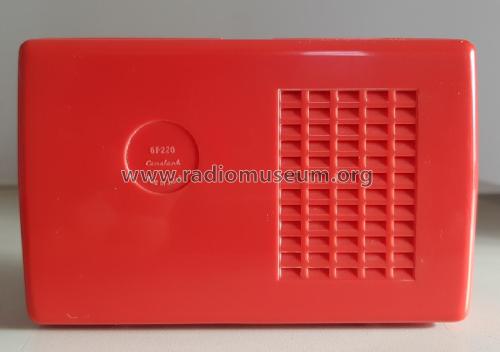

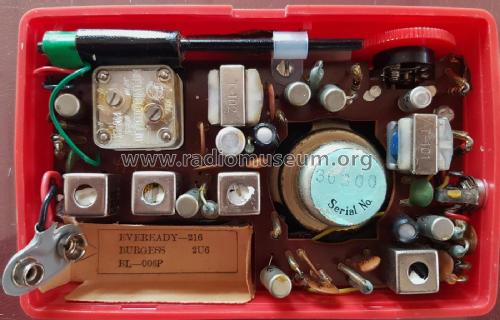

    This radio is identical to models 6T-220. As pictures show, the internal label doesn’t report any model number: it is reported in the box only whereas in the back it is possible to read Constant 6T-220.

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 0.62 lb (0 lb 9.9 oz) / 0.281 kg
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
