Power Supply for remote Antenna Amplifier P-275N
Winegard Co. Antenna Systems; Burlington (IA)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Winegard Co. Antenna Systems; Burlington (IA)
- Year
- 1961 ?
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 278167
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

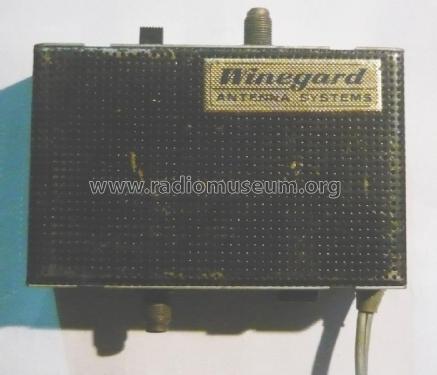

- Model: Power Supply for remote Antenna Amplifier P-275N - Winegard Co. Antenna Systems;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 110 x 70 x 45 mm / 4.3 x 2.8 x 1.8 inch
- Notes
-
Power supply P-275N for feeding a remote amplifier AP-275 with two 13CW4 Nuvistors.
Impedance: 75 Ohms with DC blocking.
Input - Output: F-type connectorsAC outlet max. load capability 500 W
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
