• Country
• Italy

• Manufacturer / Brand
• Winner; Saronno (VA)

• Year
• 1958 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 271514

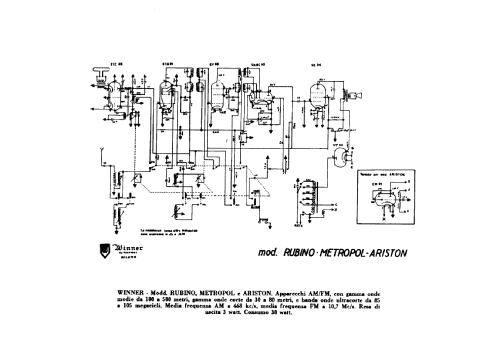

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 EM81 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• from Radiomuseum.org

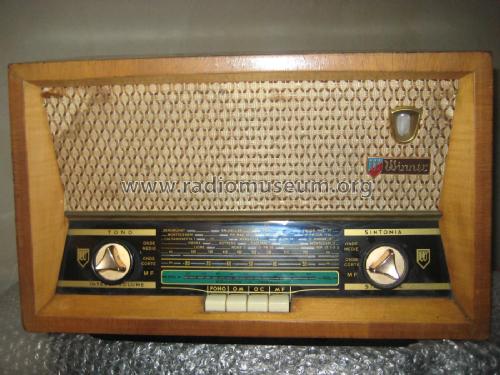

• Model: Ariston - Winner; Saronno VA

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
