• Country
• Australia

• Manufacturer / Brand
• Wireless Weekly Magazine, Sydney

• Year
• 1926

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 331778

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

• Main principle
• TRF without regeneration; Neutrodyne

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 6 & 2 x 45 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Bakelite, TUBES VISIBLE

• from Radiomuseum.org
• Model: 5 valve Neutrodyne - Wireless Weekly Magazine,

• Shape
• Chassis only or for «building in»

• Notes

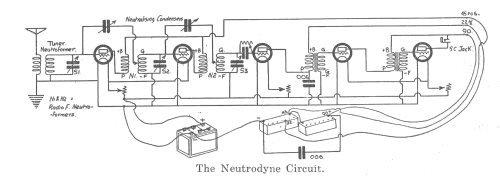

• 5 valve Neutrodyne TRF radio for the home constructor.
  An interesting article explaining how to build a simple Neutrodyne TRF receiver and explaining Neutrodyne circuit theory. The Neutrodyne coils and condensers were available from Wireless Weekly advertisers, Grodan and Radiokes and others.

• Mentioned in
• Wireless Weekly (Australia) (Mar 12, 1926, Page 9)

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
