Stereoscopic 9
Wireless Weekly Magazine, Sydney
- Country
- Australia
- Manufacturer / Brand
- Wireless Weekly Magazine, Sydney
- Year
- 1938
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 300431

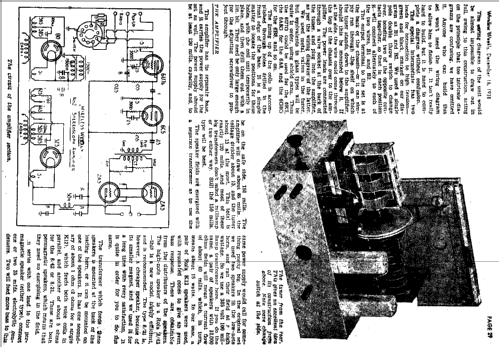

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Stereoscopic 9 - Wireless Weekly Magazine,
- Shape
- Chassis only or for «building in»
- Notes
-
Dual Wave radiogram with separate tuner and amplifier chassis.
Designed by John Moyle and presented in Wireless Weekly, December 1938. It incorporates the Efco Push Button Tuning mechanism and a push-pull audio output stage.
- Mentioned in
- Wireless Weekly (Australia) (Dec 1938, page 25.)
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
