Antennenmessgerät - Mesureur d'Antennes WA26C
Wisi (Wilh. Sihn); Niefern bei Pforzheim
- Country
- Germany
- Manufacturer / Brand
- Wisi (Wilh. Sihn); Niefern bei Pforzheim
- Year
- 1981 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 325704
-
- Brand: Sihn jr., Wilhelm; Niefern

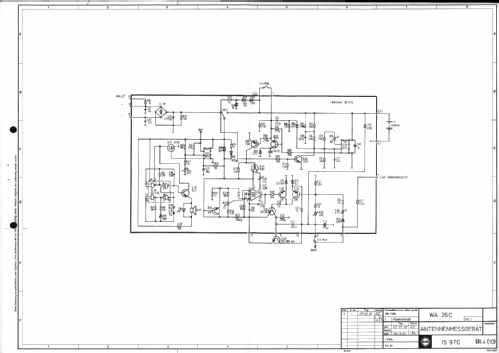

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 50Hz, 220 / 12 / 11-15 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.25 W (max.)
- Material
- Metal case
- from Radiomuseum.org
- Model: Antennenmessgerät - Mesureur d'Antennes WA26C - Wisi Wilh. Sihn; Niefern bei
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 442 x 185 x 325 mm / 17.4 x 7.3 x 12.8 inch
- Notes
-
Das Wisi Mehrnormen-Sonderkanal-Antennenmessgerät WA26C ist vorgesehen für die Messung von HF-Pegeln im VHF- UHF- Sonderkanal- und UKW-Bereich. Für CCIR-Standard B und G in Deutschland (Negativmodulation) und CCIR-Standard L in Frankreich (Positivmodulation).
Mesureur de niveau d'antennes Wisi WA26C pour la mesure de niveau HF dans les bandes TV-FM-VHF et UHF, systèmes TV B et G 625 lignes, négatifs, et système TV L 625 lignes, positif.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Nicolin Salis. See "Data change" for further contributors.
