Notar W WS2011

• Country
• Germany

• Manufacturer / Brand
• Wobbe-Radio; Winsen, später Rendsburg bei Kiel

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 17688

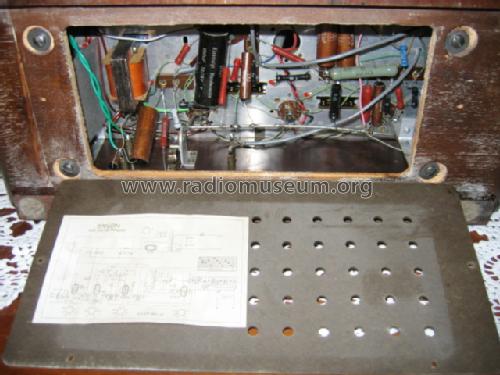

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EL41 AZ41 EM4

• Main principle
• Superheterodyne (common); ZF/IF 468 or 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Notar W WS2011 - Wobbe-Radio; Winsen, später

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 387 x 252 x 197 mm / 15.2 x 9.9 x 7.8 inch

• Notes

• Magisches Auge EM4 wird zusätzlich als NF-Vorstufe verwendet.

• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Price in first year of sale
• 225.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Historische Radios Band IV (144B")

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
