• Year
  • 1950/1951
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 17683

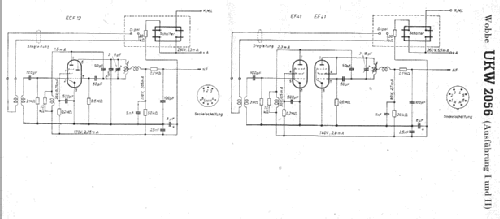

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Tuned circuits
  • 2 AM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: UKW2056-I - Wobbe-Radio; Winsen, später
  • Notes
  • UKW-Einbaug.
  • Price in first year of sale
  • 35.00 DM
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange-Nowisch
