Soundmaster NR-500
Wörlein GmbH; Cadolzburg
- Country
- Germany
- Manufacturer / Brand
- Wörlein GmbH; Cadolzburg
- Year
- 2000 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216038
-
- alternative name: Vörlein
- Brand: Soundmaster
Sammlung
Sammlung
Sammlung
Sammlung
Sammlung
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 230 / UM-3: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Soundmaster NR-500 - Wörlein GmbH; Cadolzburg
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 200 x 280 x 140 mm / 7.9 x 11 x 5.5 inch
- Notes
-
Wörlein Soundmaster NR-500, ein IC, Rundskala, AFC-Schalter.

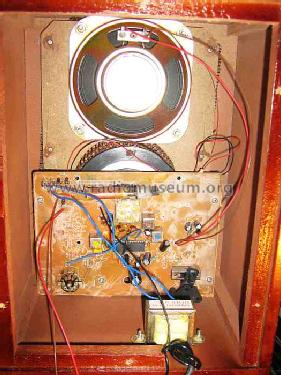

Es sind 2 etwas unterschiedliche Platinenlayouts und IC-Bestückungen bekannt.Weiterhin existiert eine Ausführung ohne zusätzliches Batteriefach.

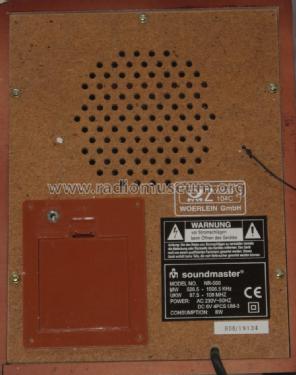

DBP Zulassungsnr. Z G639 104C
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
