• Country
• Germany

• Manufacturer / Brand
• Wörlein GmbH; Cadolzburg

• Year
• 2007

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 259142

• • alternative name: Vörlein
  • Brand: Soundmaster

• Number of Transistors
• 2

• Semiconductors
• S9014 S9018

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 230 / C: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

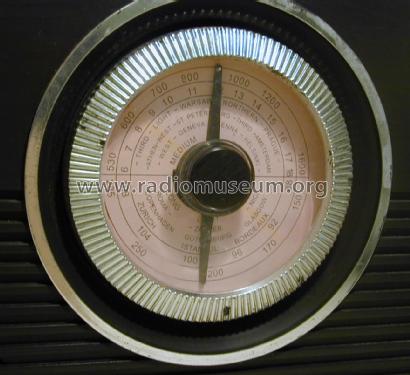

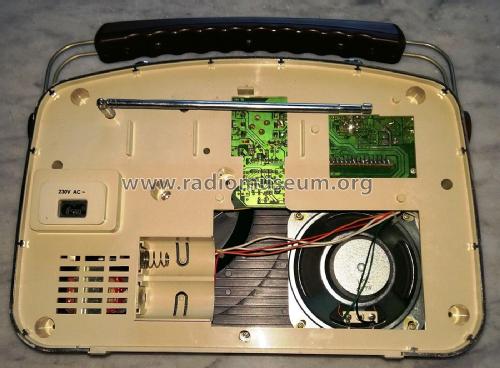

• Model: Soundmaster Radio TR-60 - Wörlein GmbH; Cadolzburg

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 220 x 75 mm / 12.6 x 8.7 x 3 inch

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
