Soundmaster UR-2009
Wörlein GmbH; Cadolzburg
- Country
- Germany
- Manufacturer / Brand
- Wörlein GmbH; Cadolzburg
- Year
- 2005 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 271581
-
- alternative name: Vörlein
- Brand: Soundmaster
- Number of Transistors
- 13
- Semiconductors
- S9018 S9018 S9014 S9014 S9014 S9014 S9014 S9014 S9014 2SC2458 S8050 S8050 S8550 1SV101 1SV101 S1A0426C01 TC9318
- Main principle
- PLL, Phase-locked loop; ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

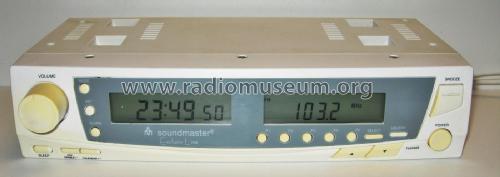

- Model: Soundmaster UR-2009 - Wörlein GmbH; Cadolzburg
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 260 x 58 x 140 mm / 10.2 x 2.3 x 5.5 inch
- Notes
-
Radio für UKW-Empfang über Wurfantenne. Frequenzbereich: 87,5...108 MHz. Verwendbar als Unterbau- oder Tischgerät. DCF-77-gesteuerte Uhr mit schwenkbarer Ferritantenne. Leistungsaufnahme: 5 Watt.
- Net weight (2.2 lb = 1 kg)
- 0.854 kg / 1 lb 14.1 oz (1.881 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
